» NP7000 Inline Fully Automatic Cross Strapping Machine | Cheever Specialty Paper
Click to Enlarge

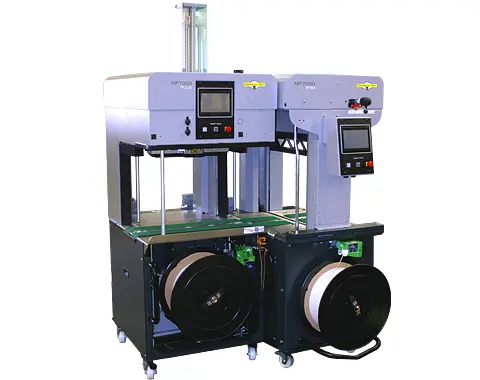

NP7000 Inline Fully Automatic Cross Strapping Machine
(NP7000 Inline)
0
Package Qty: 1
Total Price:
$0.000
($0/ea)
Quantity:
Quantity:
Add to Quote
High Performance Fully Automatic Strapping Machine The NP7000 Inline is designed to cross strap bundles without rotating at high speed. With its soft clamp compression, variable speed conveyor, narrow spaced conveyor belts , and its bundle-conditioning system, the NP7000 Inline can handle bundle variables with ease. Keeping the user in mind, the NP7000 Inline provides a quick change dispense system, an easy strap feeding system, end of strap sensor, and a user friendly smart touch – icon control display. The NP7000 Plus provides superior performance and outstanding reliability all while using 50% less power due to using GreenTech technology.
Technical Resources
NP7000 Inline Fully Automatic Cross Strapping Machine
Features
Allows for strap placement along the length of the bundle without rotating due to unique Indexing Strap Arch.
Stainless steel guides installed on the Wear-free Strap-frame
Strap width 5mm – 9mm, adjustable
Soft Automatic strap threading
Automatic discharge of remaining strap due to Strap End Detection system
Stepless automatic strap tensioning
Adjustable Torque controlled strap tension
DAT 'Direct-Access-Technology'
The exclusive eject function avoids strap jam
Safe with out protection doors - SAO ‘Safe and Open’
Downstream and Upstream interlocks with complete plug connection
Constant strap control - ASLF 'Anti-Strap-Loss-Function
Low power consumption, GreenTech
Ethernet/USB plug-ins for production data analysis
Yellow indicator lamp for strap coil detection
Icon control with SMART Touch Technology
Standby mode
Energy saving 24 volt direct-drive-motors, wear-free and energy saving
Adjustable conveyor speed steplessly
Specifications
Capacity:
32 Cross strap, bundles/minute
Conveyor Speed:
65 - 3.28 f/s (0.20 – 1.0 m/s)
Power Consumption:
0.75 kW
Weight:
1826 lbs. (830 Kg)
Sealing Method:
Heat Seal
